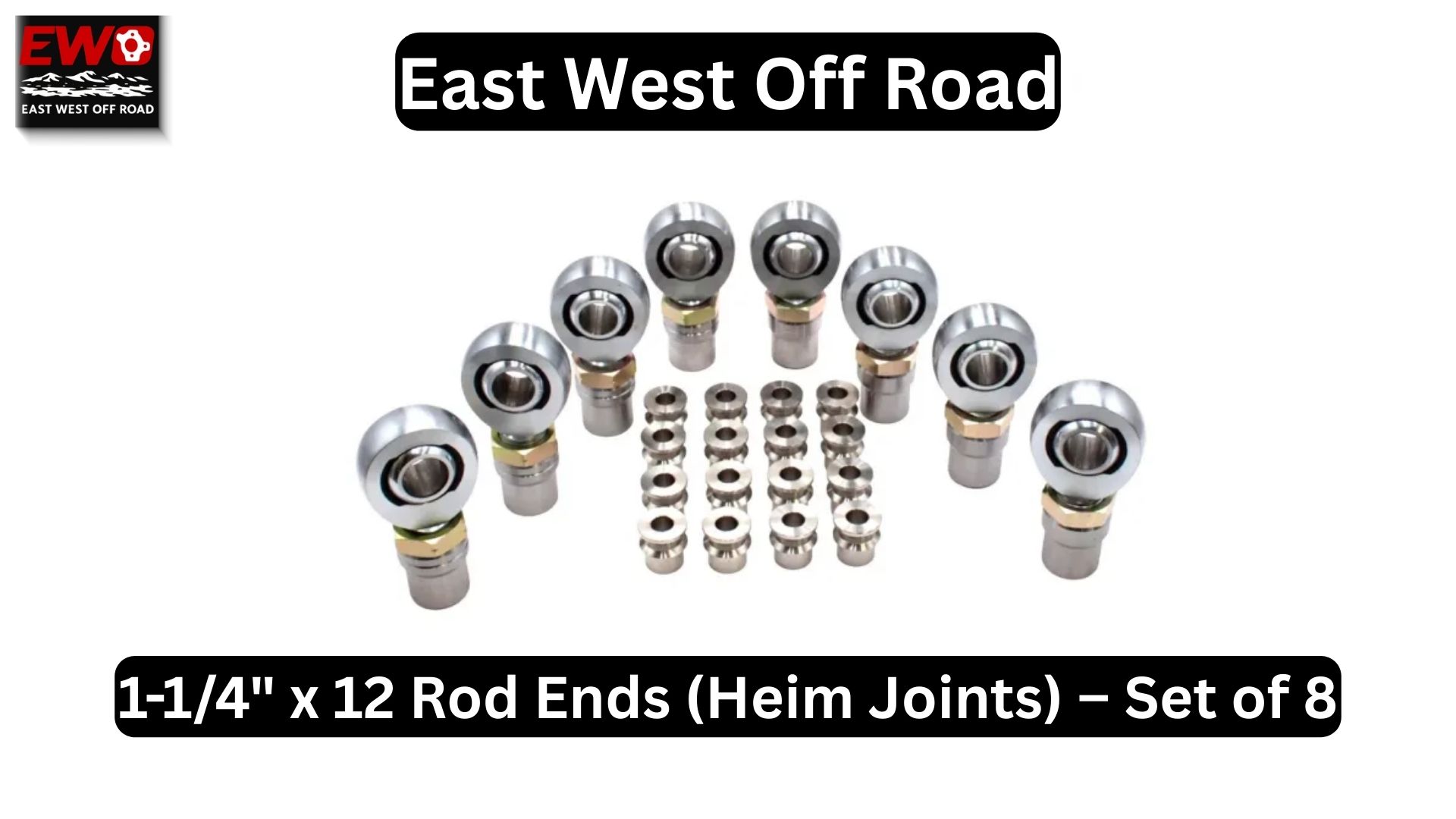

Engineering the Perfect Crawl: Why the 1-1/4-12 Rod End Set is a Game Changer In the world of extreme fabrication, "good enough" usually ends with a broken rig and an expensive recovery. Whether you are building a custom buggy from scratch or performing a massive SAS (Solid Axle Swap), your choice of Off-Road Suspension Parts will dictate your vehicle's performance. The 1-1/4-12 Rod End Set has emerged as the gold standard for builders who refuse to compromise on strength or articulation. The Foundation of Custom Off-Road Fabrication Successful fabrication starts with high-quality materials. When you're designing a Rock Crawler 4 Link Kit, you aren't just looking for parts that fit; you're looking for parts that can endure. A 1.25" Rod End Kit provides the beefy architecture needed for high-leverage suspension points. The Superiority of Heat-Treated Chromoly Joints Why do professional fabricators insist on 4130 Chromoly rod ends? It comes down to the heat-treating process. A High-Strength Heim Joint undergoes a rigorous thermal process to increase its yield strength. This results in a 76,200 lb Radial Load Heim (with peaks at 76,800 lbs) that can handle the massive weight shifts experienced during vertical climbs or when dropping off ledges. Why a Hard Chrome Finish Rod End Matters Off-roading is a dirty business. Mud, sand, and salt are the enemies of moving parts. By utilizing a Hard Chrome Finish Rod End, the ball of the joint is protected against corrosion and pitting. This smooth surface works in tandem with a Teflon Kevlar lined heim joint to ensure the movement remains fluid and precise, season after season. Technical Integration: Adapters and Spacers A Heim Joint Suspension Kit is only effective if it's integrated correctly into your chassis. This requires more than just a bolt and a nut; it requires precision-engineered interfaces. Weld-In Tube Adapters for DOM Tubing The link between your rod end and your suspension tube is the Weld-In Tube Adapter. For heavy-duty rigs, a 1-1/4 tube adapter for 2 inch OD DOM is the preferred choice. These are typically made from 1045 steel tube adapters, which offer the perfect carbon content for strong, reliable welds. Using a 1.5" Hex Tube Bung allows you to use a wrench to hold the link steady, making the setup of your Adjustable Suspension Links much easier. Solving Clearance Issues with Misalignment Spacers One of the most common mistakes in Custom 4 Link Suspension design is neglecting the "swing" of the joint. Without Heim Joints with Misalignment Spacers, your suspension might bind at just 15–20 degrees of angle. By using 1 to 9/16 stainless misalignment spacers, you can achieve significantly higher degrees of tilt, allowing your tires to stay on the ground while the body of the rig contorts over obstacles. 1-1/4 Heim Joint Kit: What's in the Box? For those ready to start their project, this Set of 8 provides the complete foundation for a front or rear 4-Link Kit: Quantity: 4 Right-Hand and 4 Left-Hand 1-1/4”-12 Thread joints. Bore Size: 1” Bore Hole (standard for 1.25" joints). Maintenance: Self-Lubricating Rod End design via Teflon Kevlar lining. Load Rating: 76,800 lbs radial load rod end. Adapters: Includes 1045 steel tube adapters for 2" OD .250 wall DOM. Frequently Asked Questions (FAQs) What is the advantage of a 1-1/4-12 Right Hand Thread vs Left Hand? By using one Right-Hand Thread Rod End and one Left-Hand thread on the same link, you create a "turnbuckle" effect. This allows you to adjust the length of your link while it is still mounted, which is essential for setting your caster or pinion angle. Why use 52100 Steel for the bearing? A 52100 Steel Bearing Heim uses high-carbon chromium steel, which is incredibly hard and resistant to wear. This ensures the ball doesn't develop "slap" or play over time, even under racing conditions. Does this kit fit 1.5" ID tubing? Yes. The Weld-In Bung for 1.5 ID is specifically designed to slide into tubing with a 1.5" inner diameter, which is the standard for 2" OD tubing with a 1/4" (.250) wall thickness. Are these joints suitable for a Race Car Heim Joints application? Absolutely. While designed for off-road, the high radial load and chromoly construction meet and exceed the requirements for most heavy-duty Race Car Suspension Parts
